Multi-Channel Detector for Wireless Protocols

Multi-Channel Detector for Wireless Protocols

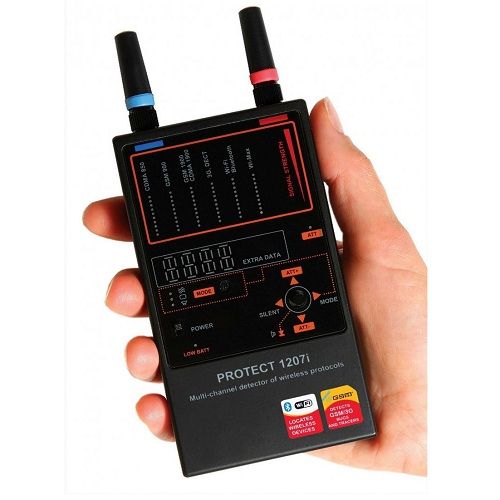

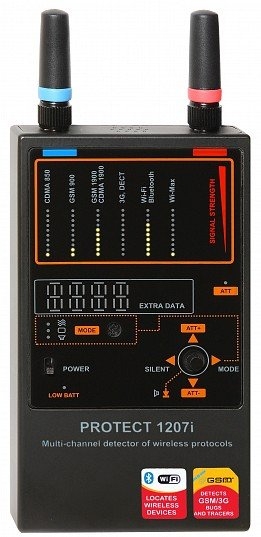

The DD1207 a reliable tool for tracing different digital transmissions such as GSM, Bluetooth and other wireless transmissions (Cellphones and GPS transmissions). The sensitivity of a common RF detector (bug detector) is spread along a wide frequency range, usually 3, or even 6-7 GHz. This means the common detector cannot detect such weak and non-continuous signals as Bluetooth, Wi-Fi or Wi-Max. Even more powerful signals like GSM-1800 are also hard to detect because of their low sensitivity at higher frequency ranges.

Each detection type has its own bar graph to show signal strength. There is an attenuator button to use when honing in on a signal. In “display mode” when a signal is detected the signal type will be shown in the “extra data” display. The DD1207 detection devices this unit also has silent, listen, visual, and vibration mode.

Real Spy Gear <========= See More =========> Bug Detectors

Features

• 6 channels of detection for different kinds of protocols
• Detection of GSM/CDMA/3G
• Detection of Bluetooth/Wi-Fi/Wi-Max
• Can be used for tracing both regular sources and illegal eavesdropping

• 6 bar graphs with 10-segments each, for accurate location of RF sources
• 4 modes: Silent, Vibration, Visual and Listen
• 2 levels of sensitivity (attenuator)
• Extra display shows which signal type has been detected
• Durable metallic body
• Microprocessor controlled
• Setup mode with selection the threshold level for vibration.

• GSM baby-monitors/GSM alarm/GSM bugs
• GSM/GPRS/EDGE/3G video cameras
• GSM Spy phones
• GPS Trackers
• Bluetooth bugging devices
• Spy phones with Bluetooth/Wi-Fi
• Wi-Fi/Wi-Max bugging devices
• Wireless videocameras 2.4 Ghz
• Detection range is 30 feet

Specs

• Bluetooth, Wi-Fi 2400-2480
• CDMA 824-849 MHz
• Detection range is 30 feet
• Wi-Max 3000-7000 MHz
• Antenna 2 Omni-directional antennas
• Box Size 7 x 5 x 1.50
• Detection distance 1-10 meters
• Detects CDMA, GSM, WCDMA/3G, Bluetooth/Wi-Fi, and Wi-Max
• Frequency range
• GSM (DCS) 1710-1790 MHz
• GSM 880-920 MHz
• operation time 10-15 hours
• power 2 AAA
• Unit Size 2.75 x 4.75 x .50
• WCDMA, 3G, GSM (PCS), DECT 1920-2000 MHz
• Weight 1.00

Includes

• 2 Antennas
• 2 Batteries size AAA
• Cleaning Cloth
• Detector
• Manual
• Screw driver
